- Inputs 1~3: HDMI, Input 4: HDMI/DP
- Outputs: HDMI PGM×2, HDMI multiview×1, USB type-C×1, LAN×1
- LAN port for RTMP streaming and upgrade
- USB disk/ SD card for PGM recording
- USB Type-C for video capturing (UVC)
- PIP function, adjustable size and position
- Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
- AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- GPIO interface for live tally system
- FTB for emergency situation
-
- Inputs 1~3: HDMI, Input 4: HDMI/DP
- Outputs: HDMI PGM×2, HDMI multiview×1, USB type-C×1, LAN×1
- USB Type-C for video capturing (UVC)
- PIP function, adjustable size and position
- Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
- AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- GPIO interface for live tally system
- FTB for emergency situation
-
- 4 channel auto-detected HDMI inputs
- 1×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- AUX output configurable and assignable
- USB-C for capturing and streaming on PC
- Clearly visible multiview & status page
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP
- Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
- Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally
- customer configuration import and export
-
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM outputs,1×HDMI multiview output, 1×USB type-C output
- All outputs are configurable and assignable
- USB for capturing and streaming on PC or Android phone
- Clearly visible multiview & status page
- Upstream key: Luma key, Chroma key, 2×PIP/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
- Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/ line In; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally
-
- 10.1 inch FHD IPS LCD monitor
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- All outputs are configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
- Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/line In; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally
-
- Uncompressed capture for live streaming, comply with UVC & UAC
- 13.3 inch FHD IPS LCD monitor
- 6 channel inputs:4×SDI & 2×HDMI
- 1×USB type-C out, 2×SDI & 1×HDMI PGM out, 1×SDI & 1×HDMI multiview out
- 1×SDI AUX output, can be selected as PGM or PVW
- Multi-format input auto-detected and PGM outputs format selectable
- T-Bar/ AUTO/ CUT transitions & Mix/ Fade/ Wipe transition effects
- PIP mode size and position adjustable
- Support audio MIXING and AFV mode
- GPIO for Tally, FTB for emergency
-
- Uncompressed capture for live streaming, comply with UVC & UAC
- Portable All-In-One design with 15.6 inch FHD LCD display for multiview
- 6 channel inputs: 4×SDI and 2×HDMI/ DVI-I/ VGA/ USB
- 1×USB type-C out, 3×SDI PGM/ AUX out
- 2×HDMI PGM & 1×HDMI multiview out
- Multiformat input auto-detected and PGM/AUX output format selectable
- T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- Luma Key/ Chroma Key/ Recordder/
- Audio mixer: TRS audio & SDI, HDMI, USB embedded audio
-

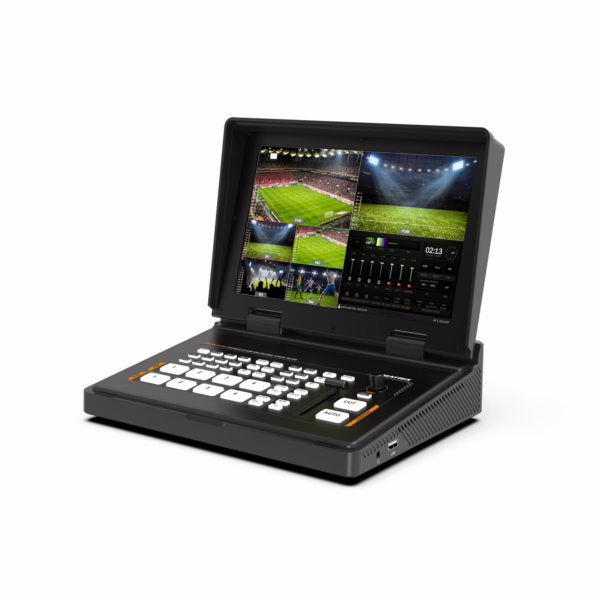

- 4×HDMI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- RTMP/SRT stream & USB disk/ SD card record
- AUX output configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3patterns) / MIX/ DIP
- Audio mixer: 4×HDMI embedded audio and 2-Ch MIC/line in; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- Customer configuration import andexport
- FTB/ MUTE/ STILL/ GPIO for tally
-
- 10.1 inch FHD IPS LCD display
- 4×HDMI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- RTMP/SRT stream & USB disk/ SD card record
- AUX output configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3patterns) / MIX/ DIP
- Audio mixer: 4×HDMI embedded audio and 2-Ch MIC/line in; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- Customer configuration import andexport
- FTB/ MUTE/ STILL/ GPIO for tally
-

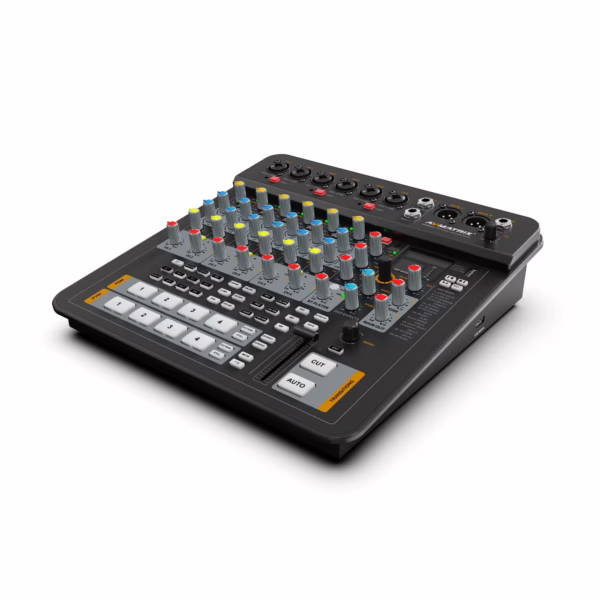

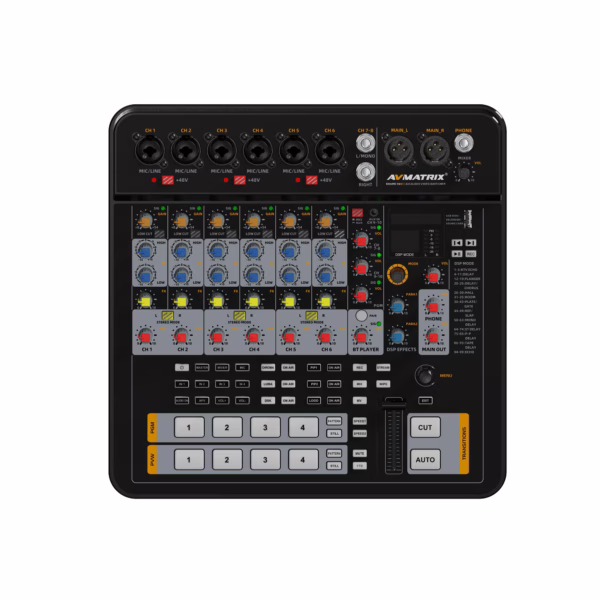

- All-in-one portable audio video switcher
- 6×microphone & 2×stereo inputs, 4-CH input embeded audio
- Balanced XLR outputs + TRS monitoring
- Gain control, signalindicator lamp, 2-band tones, low cut filter
- Mono/Stereo switch, volume adjustment function
- 99 DSP effect processor modes
- Separate bluetooth player
- MP3 recorder/player/USB sound card
- 48V phantom power supply for XLR
- 2×HDMI PGM outputs, 1×HDMI multiview output, 1×USB type-C
- RTMP/SRT stream & USB disk/ SD card record
- Luma key, Chroma key, PIP×2/POP, DSK and LOGO overlay
- T-bar/AUTO/CUT; various effects: WIPE/MIX/DIP
-
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- RTMP/SRT stream & USB disk/ SD card record
- AUX output configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3patterns) / MIX/ DIP
- Audio mixer: 2×HDMI, 2×SDI embedded audio and 2-Ch MIC/line in; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- Customer configuration import andexport
- FTB/ MUTE/ STILL/ GPIO for tally
-
- 10.1 inch FHD IPS LCD display
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- RTMP/SRT stream & USB disk/ SD card record
- AUX output configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3patterns) / MIX/ DIP
- Audio mixer: 2×HDMI, 2×SDI embedded audio and 2-Ch MIC/line in; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- Customer configuration import andexport
- FTB/ MUTE/ STILL/ GPIO for tally
-
- Built-in 5 inch LCD display
- Input: 4×SDI and 2×HDMI
- Output: 2×SDI, 1×HDMI PGM, 2×SDI AUX ,1×HDMI Multiview, 1×USB Type-C
- RTMP stream & USB Disk & SD Card Record
- USB for capturing and streaming on PC
- Professional chroma Key, downstream key, 2PIP/ POP, and LOGO overlay
- T-bar/ Auto/ Cut transitions, various effects: MIX/ DIP/WIPE effects
- Audio mixer:4×SDI, 2×HDMI audio & 2×MIC in
- PTZ camera control: VISCA, VISCA over IP, Pelco D/P & ONVIF
- Layout style: landscape & portrait mode
- FTB/ STILL, GPIO port for tally system, RS232/RS422/RS485
-
- 17.3-inch FHD IPS display
- Inputs: 6×3G-SDI and 2×SDI/4K HDMI, 1×BNC REF, 1×AUX (internal interface)
- Multi-view source routing function, supporting the definition of any input signal to any specified view
- AUX input: Video playback/UVC CAM/network pull stream/NDI
- Outputs: 2×HDMI(A/B) PGM (configurable), 4×SDI(A/B) PGM (configurable), 1×HDMI MV (source configurable), 1×REF output
- Streaming: RTMP(S)/SRT/RTSP/NDI(Optional)
- Recording and playback: USB flash drive/SD card/2.5-inch SATA
- USBC port for UVC lossless capture
- Chroma key, luma key, custom position and size PIP×3, POP, DSK, LOGO overlay
- Transition: T-bar/Auto/Cut
- Professional XLR audio input and output, supporting 48V phantom power
- Audio : 8×input video embedded audio & 2×XLR/TRS balanced & 3.5mm stereo input; 3.5mm stereo & XLR balanced output
- 8-channel PTZ control, supporting PTZ speed setting, preset position setting and calling, automatic/manual white balance, automatic/manual color and automatic/manual focus control
- Macro script function, supporting macro recording, playback and user editing of macro scripts
- Tally GPIO port
-
- 10.1 inch FHD IPS LCD display
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- RTMP/SRT stream & USB disk/ SD card record
- AUX output configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3patterns) / MIX/ DIP
- Audio mixer: 2×HDMI, 2×SDI embedded audio and 2-Ch MIC/line in; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- Customer configuration import andexport
- FTB/ MUTE/ STILL/ GPIO for tally
-

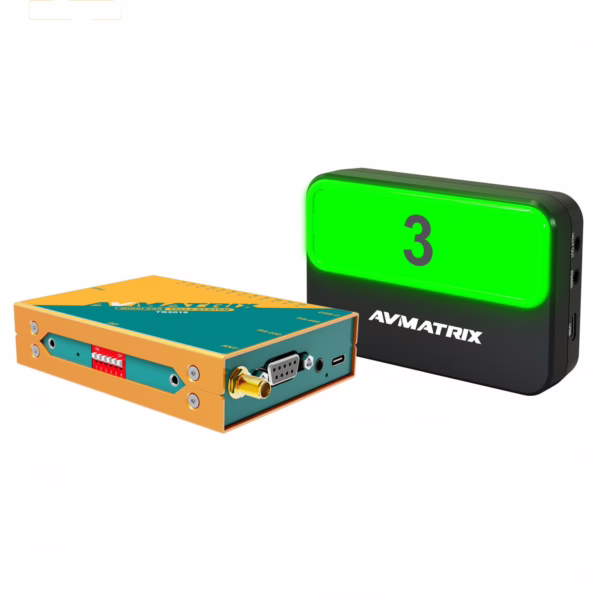

- Support 433Mhz wireless or wired tally connection
- Up to 200m wireless connection distance (line-of-sight)
- The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232
- GPIO compatible with AVMATRIX and other video switchers
- Compatible with VMix via USB type-c
- Wireless PTZ camera control via RS-232/RS-485 pass through
- Up to 16 tally lamps can be supported
- Both front and rear indicators on the lamps with 4-level adjustable brightness
- Visible signal strength and battery status on the tally lamp
- Tally lamp can be powered by USB type-c or 18650 li-ion battery
- 1/4 inch hot shoe for tally lamp installation
-
- Uncompressed capture for live streaming, comply with UVC & UAC
- 6 channel inputs: 4×SDI & 2×HDMI
- 1×USB type-C output, 2×SDI & 1×HDMI PGM outputs, 1×SDI & 1×HDMI multiview outputs
- 1×SDI AUX output, can be selected as PGM or PVW
- Multi-format inputauto-detected and PGM outputs format selectable
- T-Bar/ AUTO/ CUT transitions
- Mix/ Fade/ Wipe transition effects
- PIP mode size and position adjustable
- Support audio MIXING and AFV mode
- GPIO for Tally, FTB for emergency
-
- Uncompressed capture for live streaming, comply with UVC & UAC
- 6 channel inputs: 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player
- 3×SDI/ HDMI PGM outputs, 1×SDI AUX output, 2×SDI/ HDMI multiview outputs
- T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- Luma Key/ Chroma Key for virtual studio
- Record PGM video to SD card, up to 1080p60
- Remote PTZ camera control: Visca & Pelco D/P protocols
- PiP & PoP mode size and position is adjustable
- Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
- Tally port for multiple camera system
