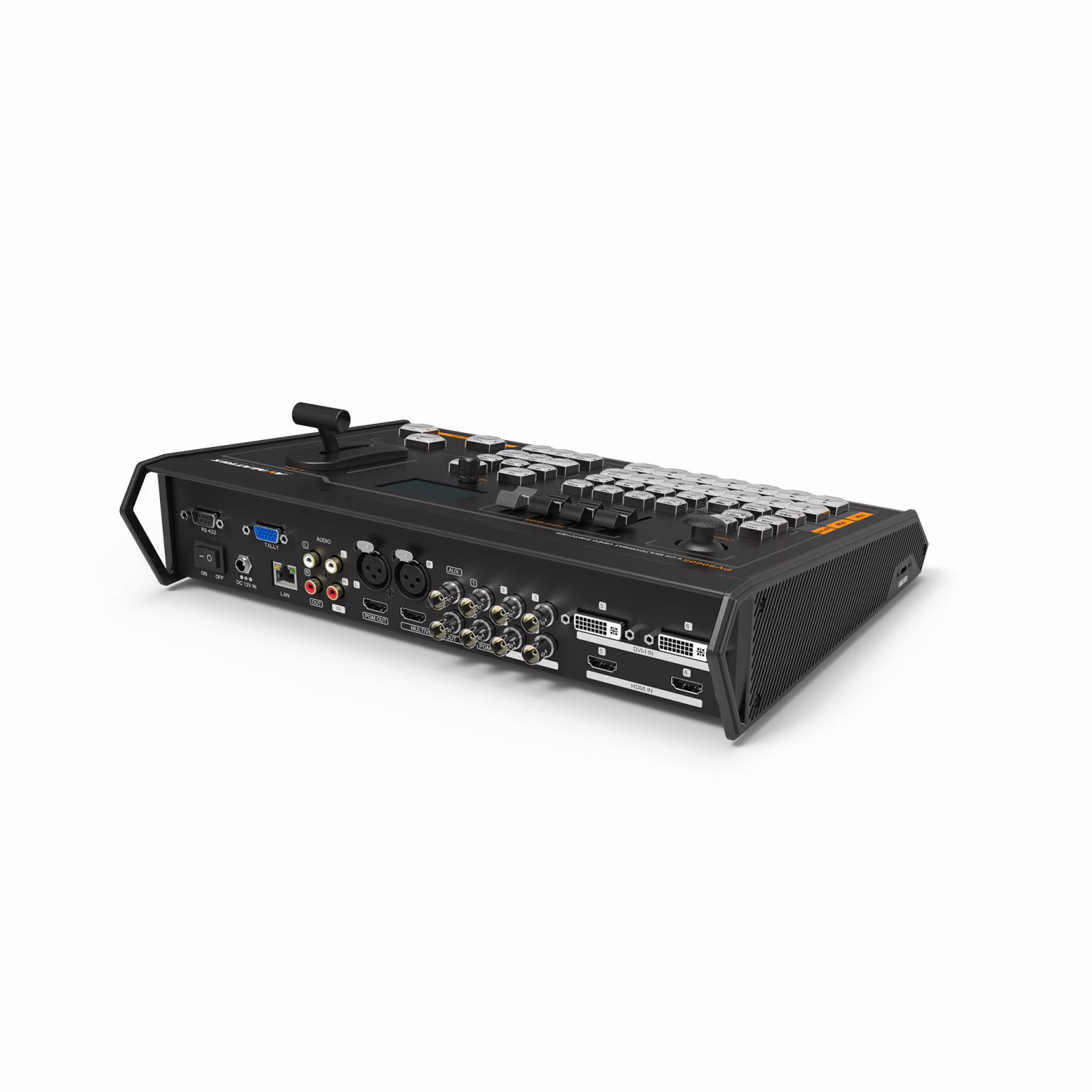

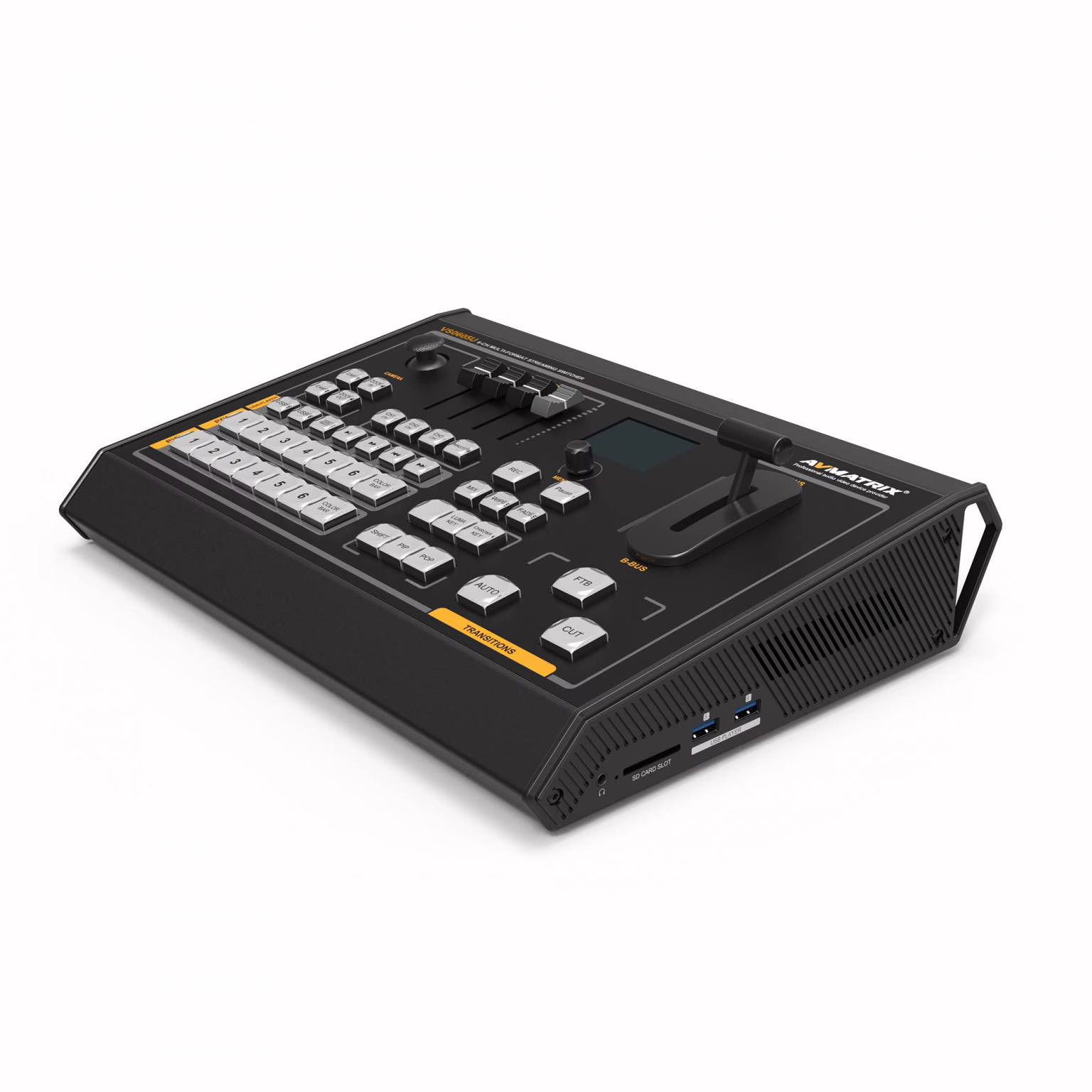

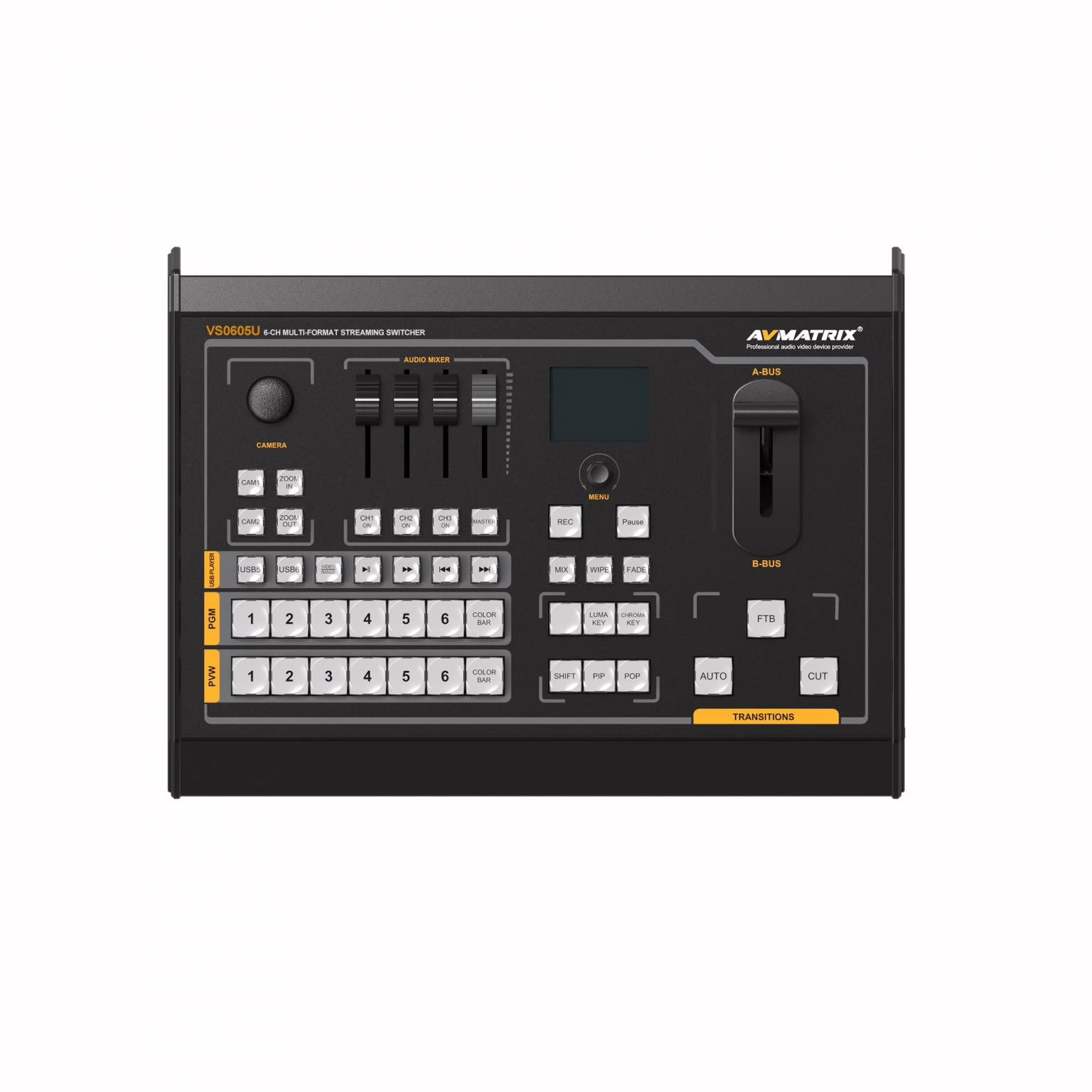

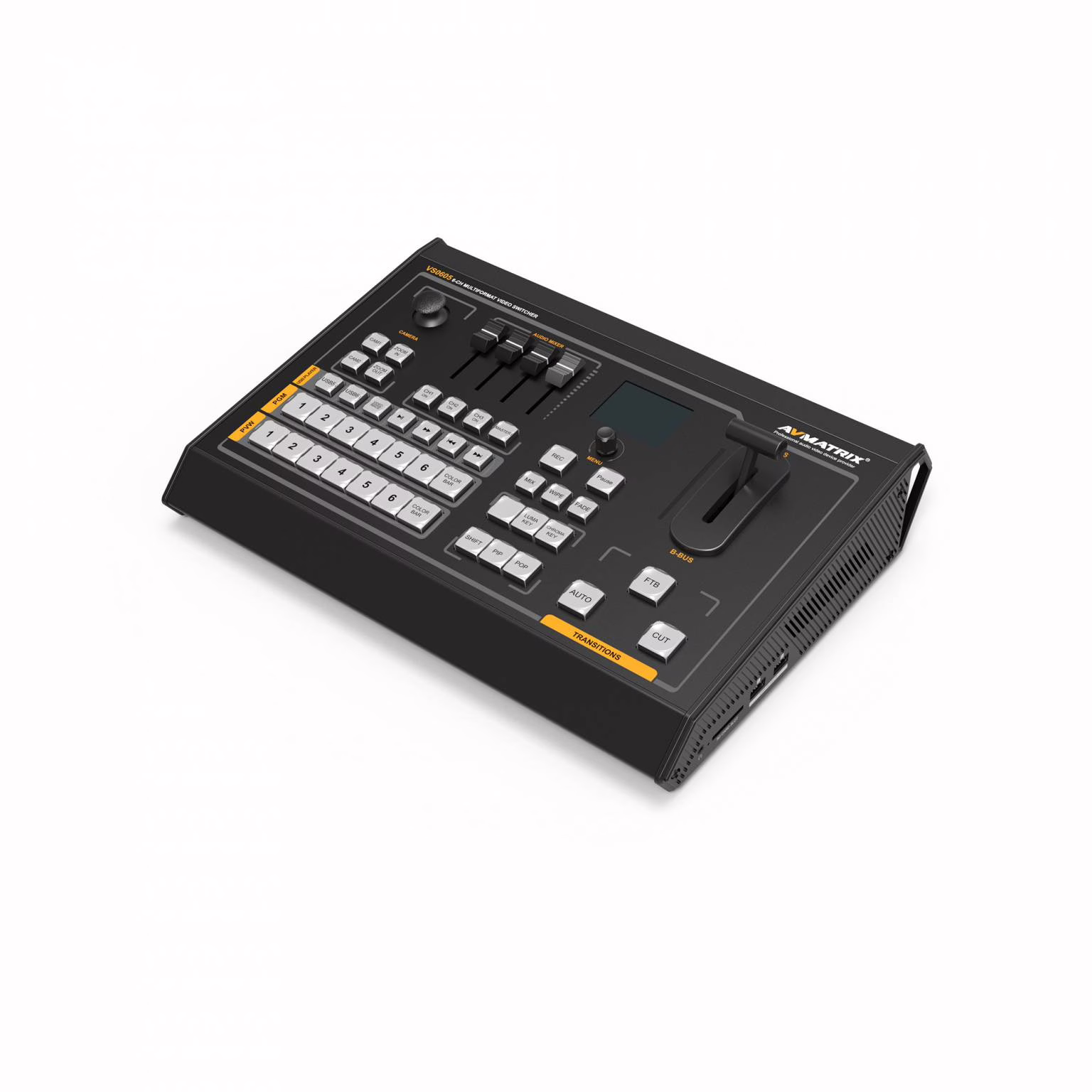

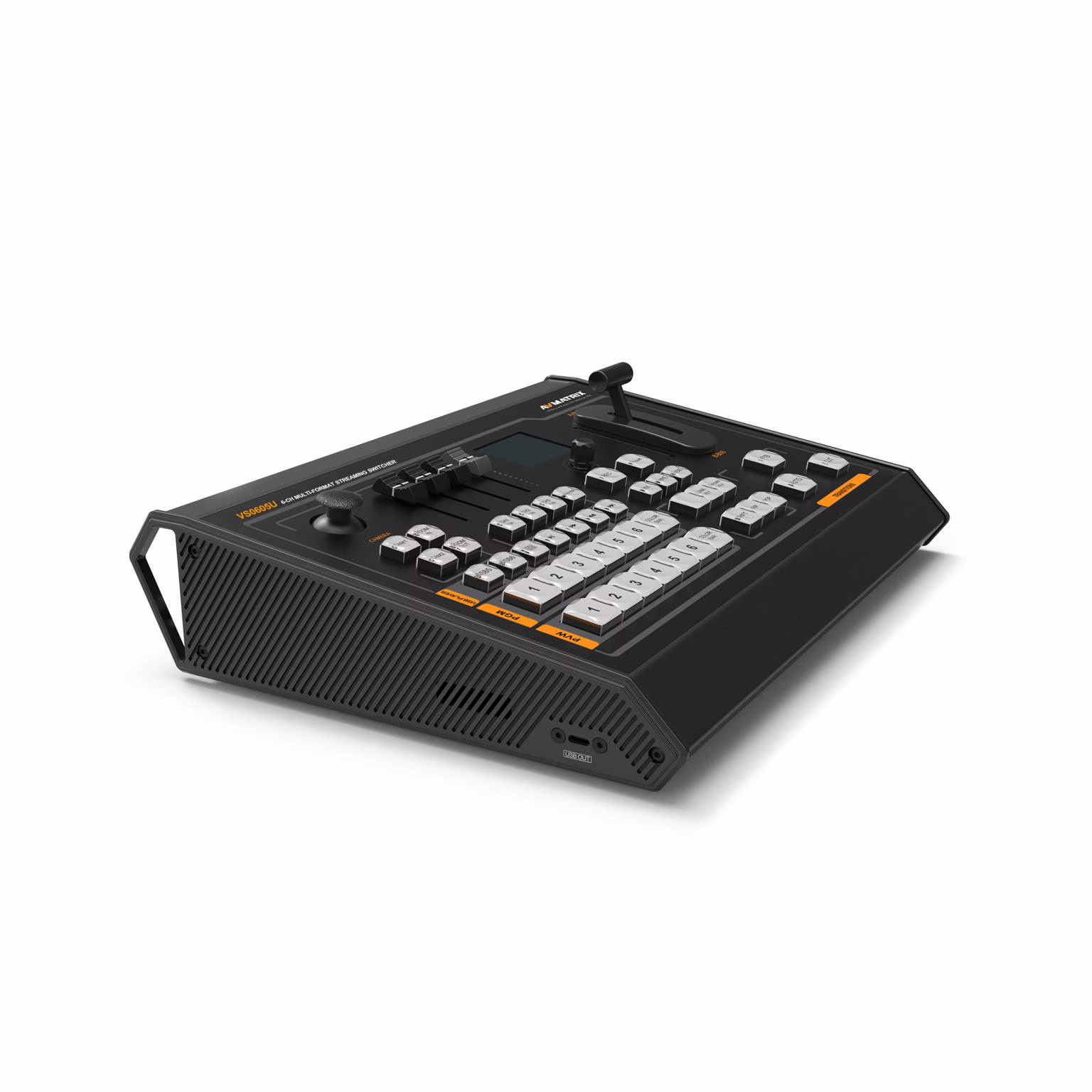

VS0605U – 6-Channel SDI/HDMI Streaming Switcher

  • Uncompressed capture for live streaming, comply with UVC & UAC
  • 6 channel inputs: 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player
  • 3×SDI/ HDMI PGM outputs, 1×SDI AUX output, 2×SDI/ HDMI multiview outputs
  • T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • Luma Key/ Chroma Key for virtual studio
  • Record PGM video to SD card, up to 1080p60
  • Remote PTZ camera control: Visca & Pelco D/P protocols
  • PiP & PoP mode size and position is adjustable
  • Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
  • Tally port for multiple camera system

6-channel multi-format switching with direct USB capture & streaming

The AVMATRIX VS0605U is an all-in-one 6-channel multi-format video switcher engineered for live broadcast, hybrid events, and high-definition web streaming. Featuring uncompressed video capture via USB Type-C, it is fully UVC/UAC compliant — allowing you to plug directly into any PC or Mac and stream instantly to OBS, vMix, YouTube, Zoom, or Facebook Live without installing drivers.

Why the VS0605U

  • Versatile 6-channel multi-format inputs. 4× auto-detected 3G-SDI inputs alongside 2× flexible inputs supporting DVI-I, HDMI, VGA, and USB media playback.
  • Plug-and-play USB streaming. Uncompressed UVC & UAC capture delivers pristine 1080p60 video directly to your streaming software over USB-C.

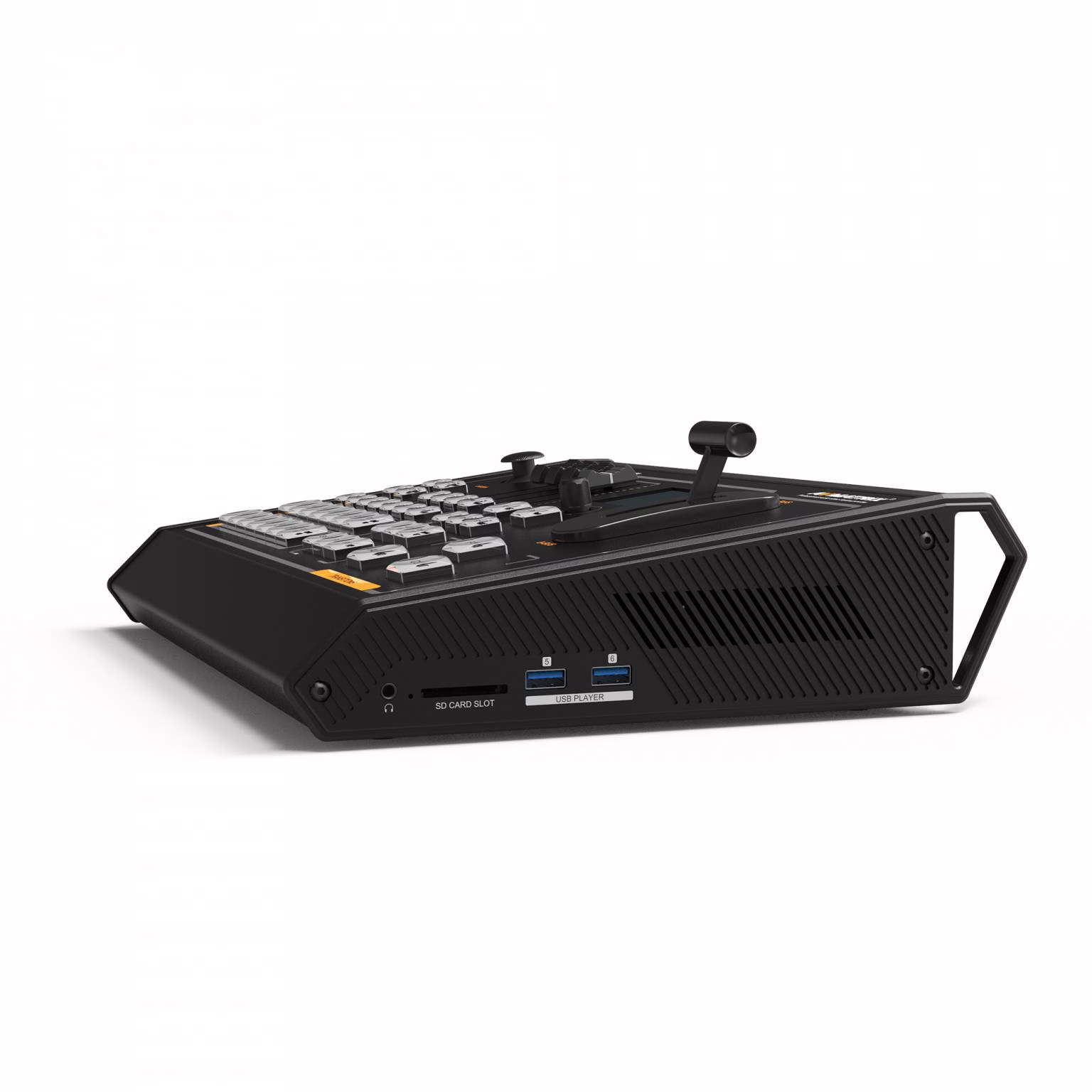

  • Built-in SD card recording. Capture your master program (PGM) feed directly to an SD card up to 1080p60 without needing an external recorder.
  • Broadcast-quality virtual studio tools. Features hardware Chroma Key (green/blue screen), Luma Key, PiP/PoP positioning, and T-Bar transitions with Mix, Fade, and Wipe effects.
  • Integrated PTZ camera control. Control PTZ cameras directly from the console using standard Visca and Pelco D/P protocols.
  • Professional audio mixing. Dedicated XLR and RCA analog inputs plus embedded SDI/HDMI/USB audio with adjustable delay and mixing controls.

Key specifications

  • 6-channel multi-format video switcher & USB streaming encoder
  • Inputs: 4× 3G/HD/SD-SDI, 2× DVI-I / HDMI / VGA / USB media player

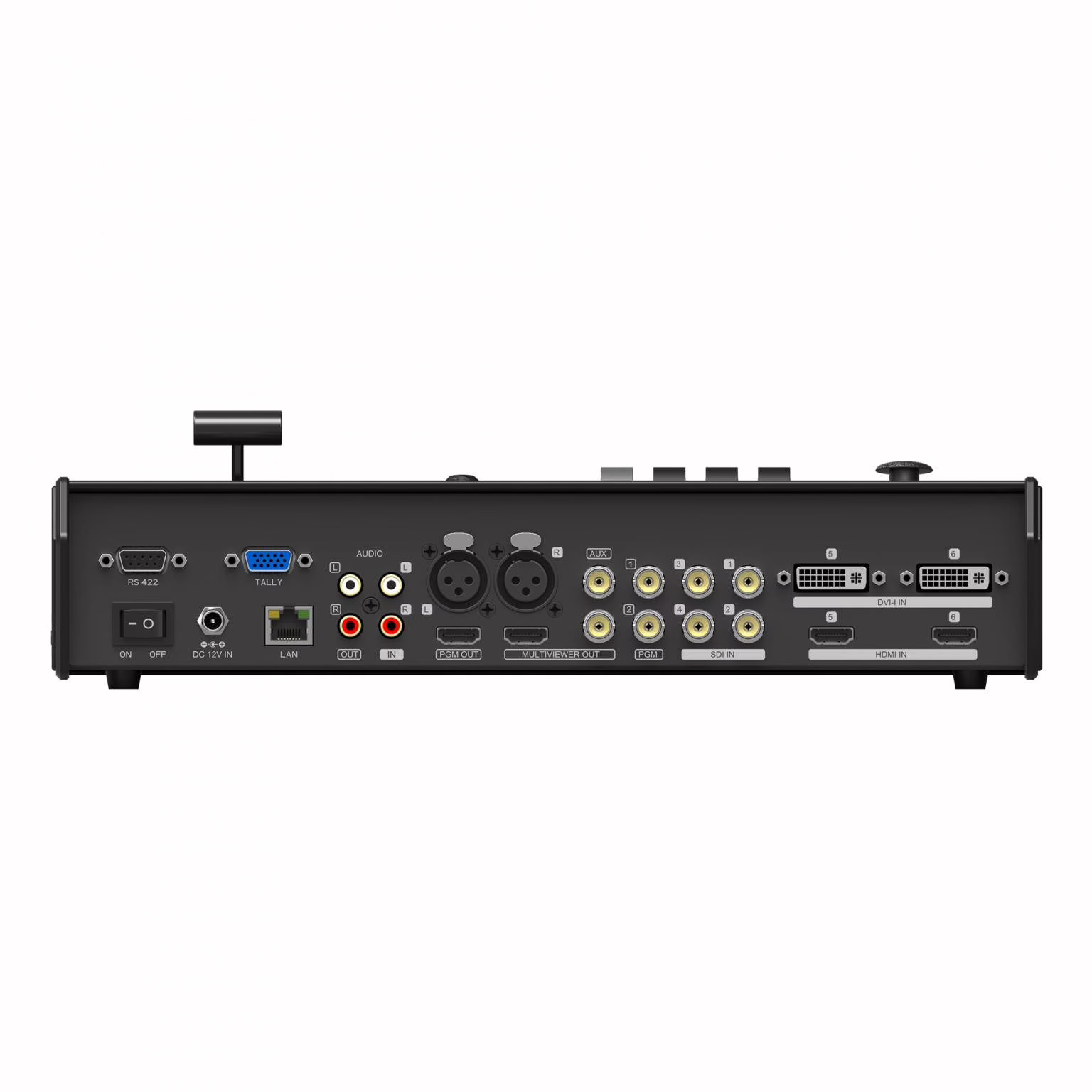

  • Outputs: 3× 3G-SDI / HDMI PGM, 1× SDI AUX (assignable), 2× SDI / HDMI multiview
  • Capture & Streaming: USB 3.1 Gen 1 Type-C (uncompressed UVC/UAC)
  • Recording: Master PGM to SD card (up to 1080p60, MP4 format)
  • Keying & Effects: Chroma Key, Luma Key, PiP, PoP, T-Bar / Auto / Cut transitions
  • Audio: 1× Stereo XLR, 1× Stereo RCA, embedded SDI/HDMI audio with mixer
  • Control: PTZ control (Visca/Pelco-D/P via RS-422/RS-485), LAN, Tally GPIO

Request pricing and UAE / Middle East availability — get a quote on WhatsApp →
